Customized lifting column

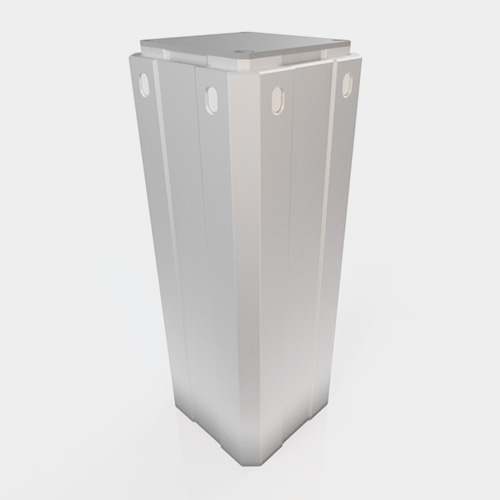

A45
2 sections / 2.500 N
The A45 lifting column is a 2-section column. The square shape and the small size make the A45 suitable for applications that require a compact and robust lifting column. With its stiff aluminium tubes and long-life pads, the A45 lifting column offers a stable and reliable guiding system that is maintenance free.
Features
- Push
- Built in hall sensors
- Limit switch
Options
Application
- Medical
- Ergonomical
- Industrial
Technical data
A-series A45
| Force, max | 2.500 N |
| Speed | 13 to 26 mm/s |
| Offset load @ 1m | 1 300 Nm |
| Stroke | 50 to 700 mm |
| Retracted length | R = S + 120 mm |
| Duty cycle | 1 min ON / 9 min OFF |
| Voltage | 24 V DC |
| Ambient temperature | +10 to +40 °C |
| Current | 4,5 A |
| Dimensions | 113 mm × 113 mm |
Accessories
Control boxes
Our high-performance control boxes control the lifting columns and can be used for synchronic drive of several columns.
Controllers
There are several kinds of controllers that enables easy and comfortable usage of the columns.
Battery pack
A battery pack is useful in applications when the product needs to be movable. The battery pack includes a 30 Ah battery and a protection case.
Cables
A large selection of cables is offered to fit the variety of control boxes, battery packages and controls.
