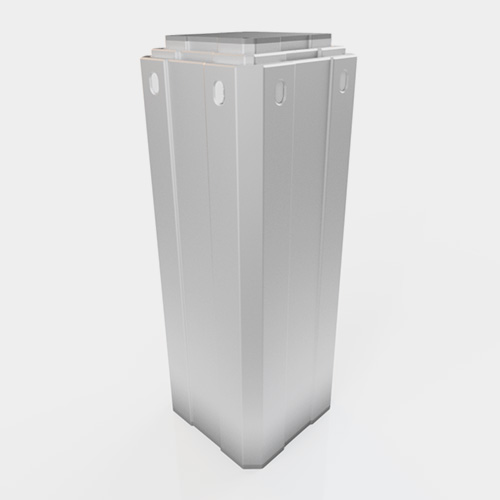

A46
3 sections / 1.300 N
The A46 lifting column is a 3-section column that works good with offset loads. The square shape and the small size make the A46 suitable for applications that require a small and robust column with short retracted lengths. With its stiff aluminium tubes and long-life pads, the A46 lifting column offers a stable and reliable guiding system that is maintenance free.
Features
-
Push
-
Built in hall sensors
Options
Application
- Medical
- Ergonomical
- Industrial
Technical data
A-series A46
| Force, max | 1.300 N |
| Speed | 15 to 35 mm/s |
| Offset load @ 1m | 600 Nm |
| Stroke | 50 to 800 mm |
| Retracted length | SA: R = S + 120 mm DA: R = S/2 + 187 mm |
| Duty cycle | 1 min ON / 9 min OFF |
| Voltage | 24 V DC |
| Ambient temperature | +10 to +40 °C |
| Current | 5 A |
| Dimensions | 113 mm × 113 mm |
Accessories
Control boxes
Our high-performance control boxes control the lifting columns and can be used for synchronic drive of several columns.
Controllers
There are several kinds of controllers that enables easy and comfortable usage of the columns.
Battery pack
A battery pack is useful in applications when the product needs to be movable. The battery pack includes a 30 Ah battery and a protection case.
Cables
A large selection of cables is offered to fit the variety of control boxes, battery packages and controls.
