Customized lifting column

D23

2 sections / 4.000 N

The two-stage lifting column, equipped with dual hall sensors, is the ideal solution for industrial workbenches, assembly tables, and versatile office furniture. The compact D23 model features small outer dimensions and is equipped with standard plates or as an option contour shaped plates. D23 offers flexibility for diverse applications. Depending on control box, synchronization to drive a single unit or up to 12 lifting columns is available for precise, coordinated movement. Columns in D-series, engineered to meet your specific needs, are available in standard versions with short lead time.

Datasheet for D23 (4.000 N)

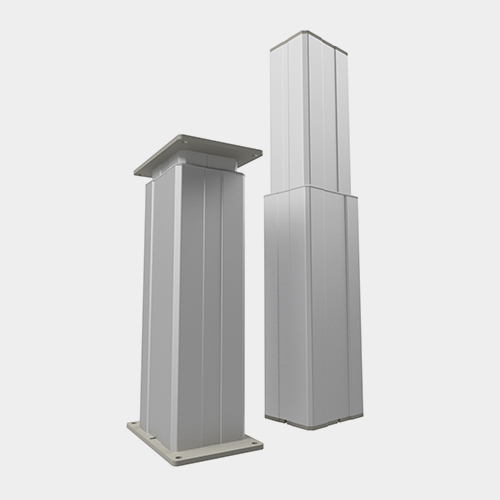

Lifting column D23
Lifting column D23

Features

  • Dual Hall sensors
  • Very low friction
  • Limit switches

Options

  • Contour shaped top/bottom plates
  • Single or multi column use
  • Customized

Application

  • Ergonomical furniture
  • Industrial
  • Kitchen

Technical data

D23

D-series D23

Force, max 4.000 N
Speed 5 to 20 mm/s
Offset load @ 1m Static: 700 Nm
Dynamic: 450 Nm
Stroke 50 to 500 mm
Retracted length R = S + 205 mm
Duty cycle 1 min ON / 9 min OFF
Voltage 24 V DC
Ambient temperature +10 to +40 °C
Current 4.5 A
Dimensions 174.5 mm × 135 mm

Accessories

Advantages of X2 lifting columns

Highly customizable

Innovative

Reliable

Extremely robust

*

Low friction

Maintenance-free systems
