E-series

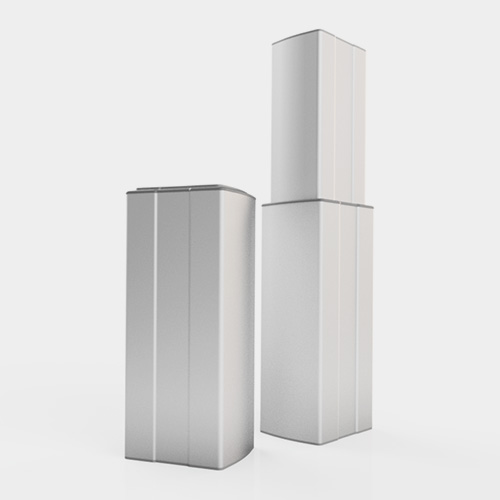

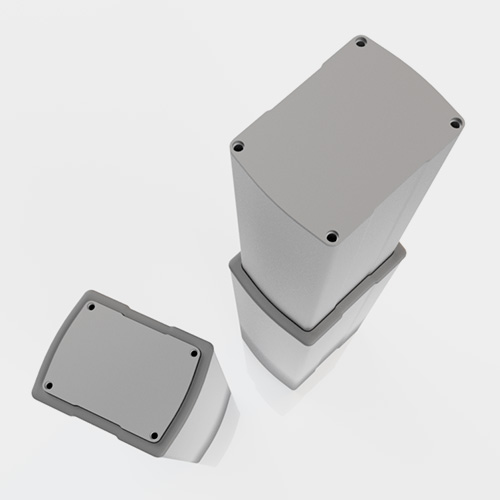

The E-series is the light version series among the rectangular lifting columns. It is our smallest rectangular column with dimensions of 134×103 mm. E-series is designed for applications that needs a highly efficient and small lifting column to lift lighter loads. It is recommended for applications like medical or industrial workstations, or ergonomic chairs and tables with loads up to 250 kg.
Download datasheets
Features
- Robust
-
Small dimensions
- Very low friction
Options
Application
- Medical
- Ergonomical
- Industrial
E-series models
E23
Features
- Robust
- Small size
- 2 sections
| Force, max [N] | 2.500 |
|---|---|
| Speed, max [mm/s] | 25 |
| Stroke, max [mm] | 700 |
Columns
Features
- Stiff aluminium
- Low friction
- Long lifetime
|
Description Tubing system without motors, spindle or cables. Long-life pads are included in all tubes for a smooth run. |
Crank columns
Features
- Manual
- Low friction
- Easily operated
|
Description Crank columns are manually operated by a crank. Length between column and crank can be adjusted according to your demand. |
