Customized lifting column

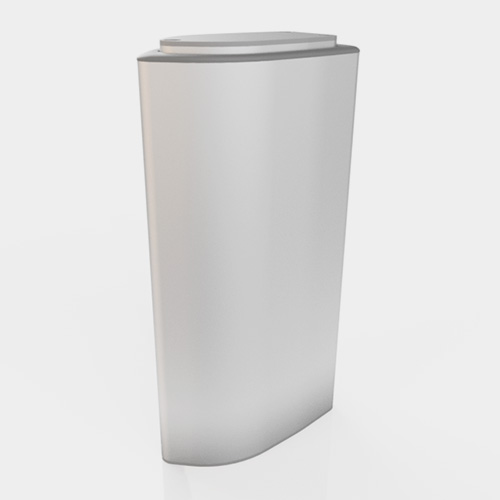

F23
2 sections / 2.500 N
The F23 lifting column is a 2-section column. The asymmetric shape and the small size make the F23 suitable for applications where a softer design is desired. With its stiff aluminium tubes and long-life pads, the F23 lifting column offers a stable and reliable guiding system that is maintenance free.
Features
- Push
- Built in hall sensors
- Limit switch
Options
Application
- Medical
- Ergonomical
- Industrial
Technical data
F-series F23
| Force, max | 2.500 N |
| Speed | 13 to 26 mm/s |
| Offset load @ 1m | 800 Nm |
| Stroke | 50 to 700 mm |
| Retracted length | R = S + 120 mm |
| Duty cycle | 1 min ON / 9 min OFF |
| Voltage | 24 V DC |
| Ambient temperature | +10 to +40 °C |
| Current | 6 A |
| Dimensions | 154 mm × 83 mm |
Accessories
Control boxes
Our high-performance control boxes control the lifting columns and can be used for synchronic drive of several columns.
Controllers
There are several kinds of controllers that enables easy and comfortable usage of the columns.
Battery pack
A battery pack is useful in applications when the product needs to be movable. The battery pack includes a 30 Ah battery and a protection case.
Cables
A large selection of cables is offered to fit the variety of control boxes, battery packages and controls.
